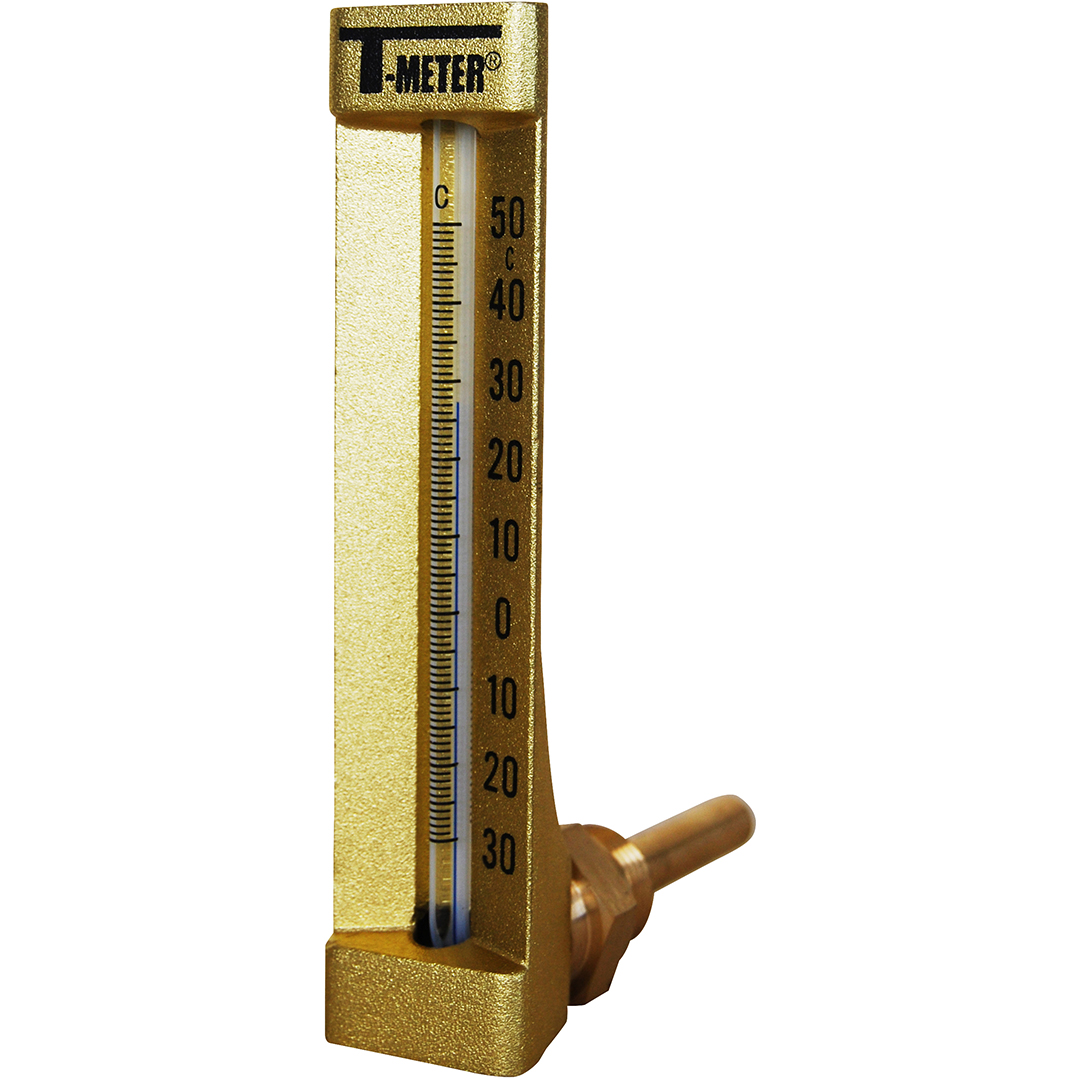

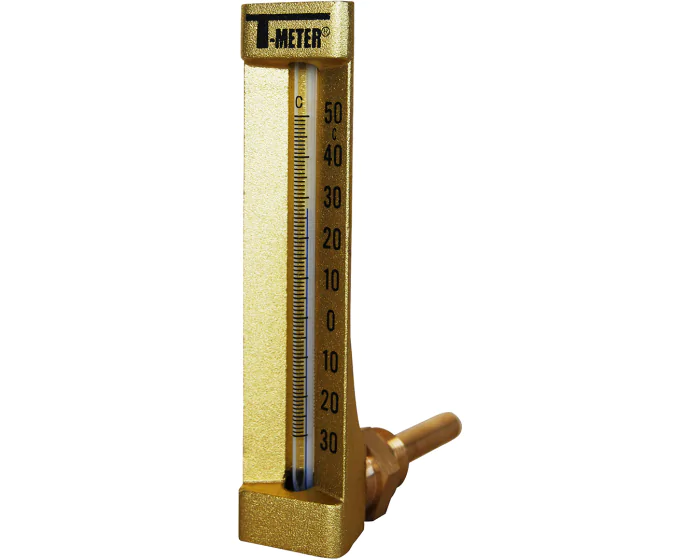

Syveco offers this 1677 vertical angle thermometer, 150 mm high and 100 mm immersion, with engraved graduated glass, brass BSP fitting and V-shaped case
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Height of the thermometer | 150.00 |
| Construction standard | DIN 16189 and DIN 16190 |
| Brand | T-METER |
| Liquid temperature range (°C) | 0 / 120 |
| Fluid | Cold water |
| Housing material | Aluminium |
| PS (bar) | 16 |
| Connections | BSP M |
| TS max (°C) | 300 |
| TS min (°C) | -30 |
| Warranty period | 2 years |
| Type of thermometer | Angle |
| Plunger length (mm) | 100 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP M 0 / 120 | 1677001 | S1013639 |
€12.61
(excl. btw)
|
add to cart |
| BSP M -30 / 50 | 1677002 | S1013640 |
€12.61
(excl. btw)
|
add to cart |
